Horizontal ToggleRange: Clamp
Group: Horizontal Toggle
Style: Straight Base Adjustable

Click on Back to return to Product Group details.

<< Back

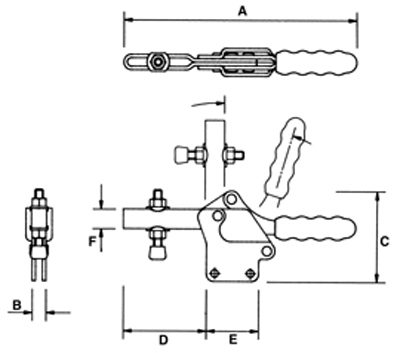

Part No Nominal force Weight (Kg) A B C D E F G H File
H50/1B 50daN 0.033 70 2 29 26 16 14 - - Zipped
H75/1B 75daN 0.1 116 8 45 37 25 22 - - Zipped
H75/1BSS 75daN 0.1 116 8 45 37 25 22 - - Zipped
H150/1B 150daN 0.25 170 10 65 61 38 28 - -
H150/1BSS 150daN 0.25 170 10 65 61 38 28 - -
H250/1B 250daN 0.5 224 12 82 79 42 39 - - Zipped
H350/1B 350daN 0.9 274 16 108 108 59 54 - - Zipped
H450/1B 450daN 1.6 305 20 130 128 66 66 - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
