Horizontal ToggleRange: Clamp
Group: Horizontal Toggle
Style: Straight Base Loose

Click on Back to return to Product Group details.

<< Back

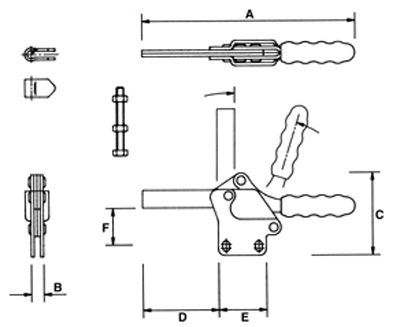

Part No Nominal force Weight (Kg) A B C D E F G H File
H250/1A 250daN 0.5 226 12 82 82 42 39 - - Zipped
H350/1A 350daN 0.9 280 16 108 109 59 54 - - Zipped
H450/1A 450daN 1.6 310 20 130 130 66 66 - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
