AccessoriesRange: Clamp
Group: Accessories
Style: Plastic Grips

Click on Back to return to Product Group details.

<< Back

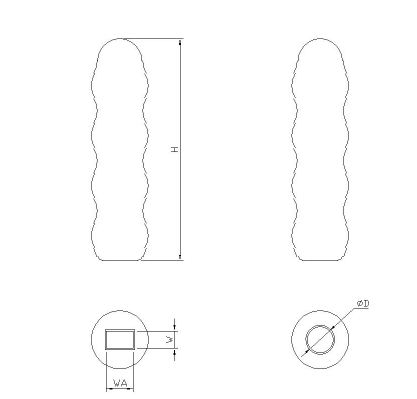

Part No H W WA ØD Fits Clamp Model - - - - - -
GR/01 45 4 8 - H75 V75 CV75 V100 H100 - - - - - -
GR/02 60 5 10 - H150 - - - - - -
GR/03 53 6 10 - V150 LH200 - - - - - -
GR/04 55 5 13 - H200 - - - - - -
GR/05 58 4 13 - V200 P100 - - - - - -
GR/06 85 6 15 - V250 H250 CV250 V300 LH400 P200 P350 - - - - - -
GR/07 65 6 16 - H300 - - - - - -
GR/08 60 5 13 - P250 - - - - - -
GR/09 105 8 17 - V250 CV350 H350 P400 P450 P550 TC79 - - - - - -
GR/10 95 10 22 - V450 H450 LH700 - - - - - -
GR/11 120 10 25 - V550 - - - - - -
GR/12 105 8 19 - H700 - - - - - -
GR/13 115 8 22 - P750 - - - - - -
BR/1 70 - - 9.5 P600L - - - - - -
BR/2 75 - - 12.7 P1200L - - - - - -
BR/3 100 - - 16 P2500L - - - - - -
B7 90 - - 19 VA700 P5000L - - - - - -
B12 100 - - 22 VA1200 - - - - - -
B24 100 - - 25 VA2400 - - - - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
