AccessoriesRange: Clamp
Group: Accessories
Style: Flanged Washers

Click on Back to return to Product Group details.

<< Back

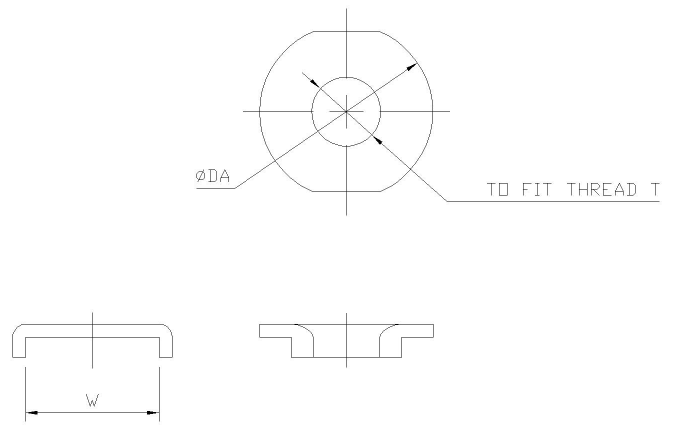

Part No Thread T W ØDA Fits Spindle - - - - - - -
FW05/09 M5 9 13 H50 - - - - - - -
FW05/10 M5 10 15 H75 V75 V75X V100 - - - - - - -
FW06/12 M6 12 18 H150 V150 V150X V200 - - - - - - -
FW08/15 M8 15 22 H250 V250 V250X V300 - - - - - - -
FW10/20 M10 20 26 H350 V350 - - - - - - -
FW12/23 M12 23 32 H450 V450 V450X H700 - - - - - - -
FW16/27 M16 27 35 V550 - - - - - - -
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
