Cam Heavy DutyRange: Clamp
Group: Cam Heavy Duty
Style: Cam Ram Clamps

Click on Back to return to Product Group details.

<< Back

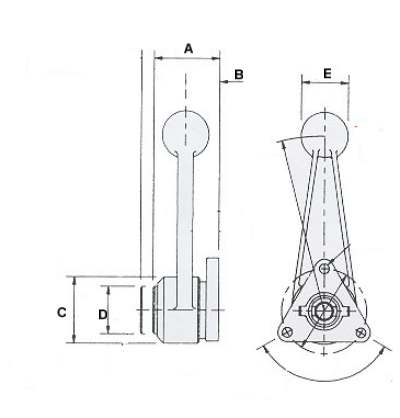

Part No Rotation Hand force Mallet force Weight (Kg) A B C D E F File
CR4000 CW 750daN 4000daN 0.55 41 22 42 30 30 - Zipped
CR4000A A-CW 750daN 4000daN 0.55 41 22 42 30 30 - Zipped
CR5000 CW 850daN 5000daN 1.3 57 28 56 42 40 - Zipped
CR5000A A-CW 850daN 5000daN 1.3 57 28 56 42 40 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
