Cam Heavy DutyRange: Clamp
Group: Cam Heavy Duty
Style: Long Handle Cam Push

Click on Back to return to Product Group details.

<< Back

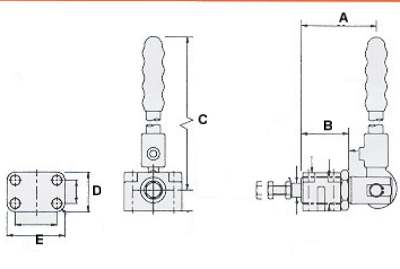

Part No Nominal force Weight (Kg) A B C D E F G H File
CP1500L 1500daN 0.35 50 32 172 26 39 - - - Zipped
CP2000L 1700daN 0.75 66 41 228 34 50 - - - Zipped
CP3000L 2000daN 2 86 54 312 43 68 - - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
Cam Heavy Duty
