Cam Push/Cam PullRange: Clamp
Group: Cam Push/Cam Pull
Style: Cam Push Cam Pull

Click on Back to return to Product Group details.

<< Back
Part No Nominal force Weight (Kg) Hand Push/Pull? A B C D E F File
CP1005 500 0.8 Right Push - - - - - - Zipped
CP1006 500 0.8 Right Pull - - - - - - Zipped
CP1007 500 0.8 Left Push - - - - - - Zipped
CP1008 500 0.8 Left Pull - - - - - - Zipped

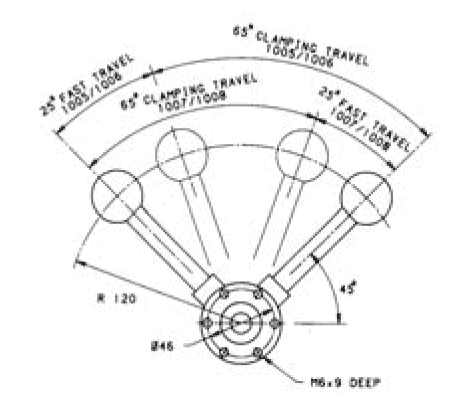

For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
Cam Push/Cam Pull
