Cam Heavy DutyRange: Clamp
Group: Cam Heavy Duty
Style: Cam Push Clamps

Click on Back to return to Product Group details.

<< Back

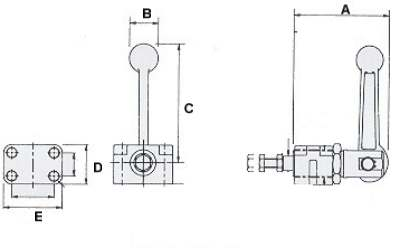

Part No Hand force Mallet force Weight (Kg) A B C D E F G File
CP1500 600daN 2000daN 0.27 64 19 77 26 39 - - Zipped
CP2000 650daN 2000daN 0.6 84 25 103 34 50 - - Zipped
CP3000 650daN 3000daN 1.5 110 32 140 43 50 - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
Cam Heavy Duty
