Swing & AssembliesRange: Clamp
Group: Swing & Assemblies
Style: Swing Assemblies

Click on Back to return to Product Group details.

<< Back

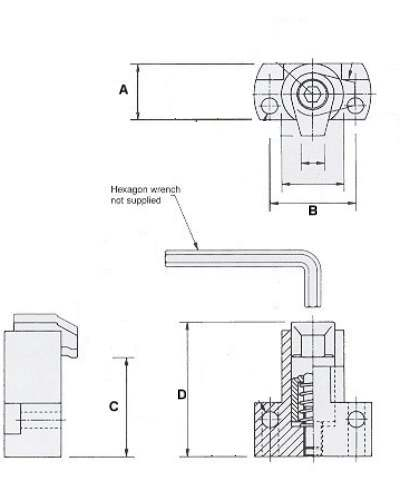

Part No Nominal force Weight (Kg) A B C D E F G H File
1016-08 1800daN 0.33 26 38 47.5 62 - - - - Zipped
1016-10 2000daN 0.65 31 48 57.5 74 - - - - Zipped
1016-12 2500daN 0.81 36.5 55 67 87 - - - - Zipped
1016-16 3000daN 1.6 43.5 65 87 112 - - - - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
