Swing & AssembliesRange: Clamp
Group: Swing & Assemblies
Style: Swing Clamps

Click on Back to return to Product Group details.

<< Back

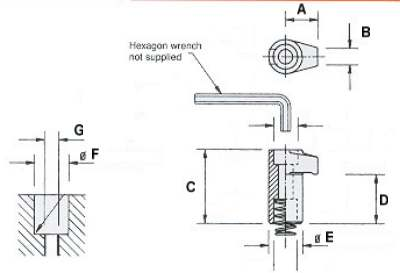

Part No Nominal force Weight (Kg) A B C D E F G H File
1015-08 1800daN 0.08 18 10 45 31 19.88/19.95 20.00/20.05 M8 - Zipped
1015-10 2000daN 0.15 23 12 55 39 23.88/23.95 24.00/24.05 M10 - Zipped
1015-12 2500daN 0.23 27 15 65 46 27.88/27.95 28.00.28.05 M12 - Zipped
1015-16 3000daN 0.44 36 20 85 60 33.88/33.95 34.00/34.05 M16 - Zipped
For full dimensions click on the part number. Part numbers ending with SS are stainless steel. To download 2D DXF & IGS click ´Zipped´.
Click  for multi-format 2D & 3D models. Select preferred language.
