Stainless SteelRange: Airmovers:
Group: Stainless Steel Adjustable Gap

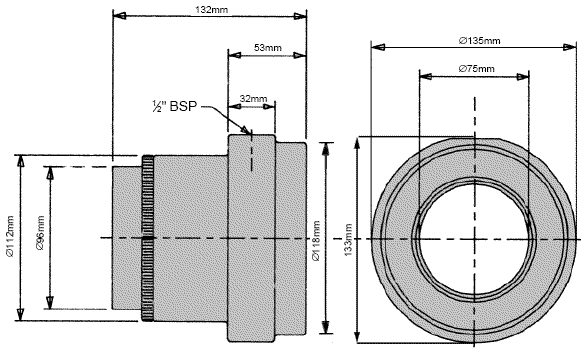

Product: SS75A

Technical details.

<< Back

Material: Stainless Steel
Weight: 4.5Kg
Standard Gap: Adjustable
DBA at: 5.5 bar is 81
Shims: Not applicable
Optional Extra
Standard Inlet Threads: 1/2" BSP
Options: 1/2 NTP
Please specify on order 1/2" NPTF
Bar Vol in m³ /min Vol out m³ /min
1.38 0.425 6.23
2.76 0.651 9.203
4.14 0.906 12.035
5.52 1.133 14.866






ss75a
