Stainless SteelRange: Airmovers:
Group: Stainless Steel Adjustable Gap

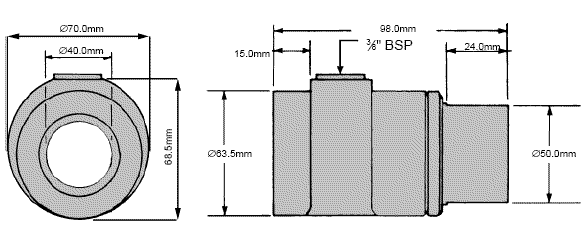

Product: SS40A

Technical details.

<< Back

Material: Stainless Steel
Weight: 0.84Kg
Standard Gap: Adjustable
DBA at: 5.5 bar is 80
Shims: Not applicable
Optional Extra
Standard Inlet Threads: 3/8" BSP
Options: 3/8 NTP
Please specify on order 3/8" NPTF

Bar Vol in m³ /min Vol out m³ /min
1.38 0.207 3.256
2.76 0.323 5.182
4.14 0.439 6.513
5.52 0.555 8.297






ss40a
