AluminiumRange: Airmovers:
Group: Aluminium Strip
Product: SE600 (600mm)

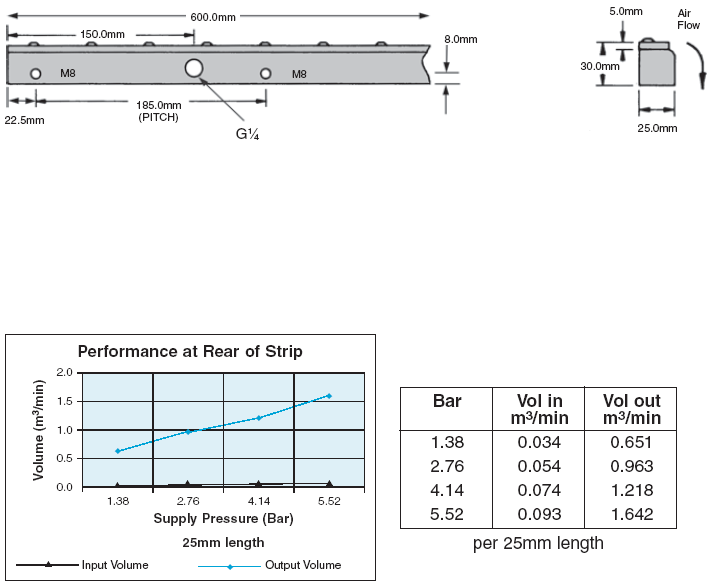

Technical details.

<< Back

Material: Aluminium/Zinc plated steel
Weight: 1.35Kg
Standard Gap: 00.5-0.10mm
DBA at: 5.5 bar is 80
Shims: Not applicable
Optional Extra
Standard Inlet Threads: 1/4" BSP
Options: 1/4 NTP
Please specify on order 1/4" NPTF

Bar Vol in m³ /min Vol out m³ /min
1.38 0.034 0.651
2.76 0.054 0.963
4.14 0.074 1.218
5.52 0.093 1.642






se600
