StandardRange: Airmovers:
Group: Standard Extractors Ventilators
Product: EV4

Technical details.

<< Back

Material: GRP
Weight: 1.5Kg
DBA at: 5.5 bar is 85
Takes 6" bore ducting
Optional Extra
Standard Inlet Threads: 1.2" BSP
Options: 1/2 NTP
Please specify on order 1/2" NPTF

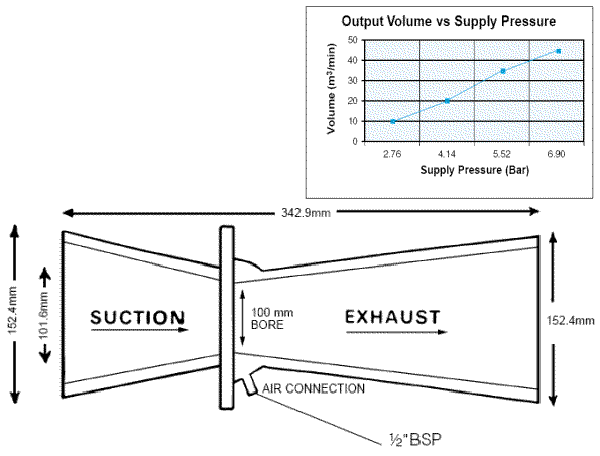

Bar Vol in m³ /min Vol out m³ /min
2.76 TBA 10.194
4.14 TBA 20.388
5.52 TBA 35.396
6.9 TBA 45.307






ev4
