Trigger ActionRange: Airmovers:
Group: Trigger Action Blow Guns
Product: CG22

Technical details.

<< Back

Material: Nylon
Weight: 0.15Kg
Standard Gap: Adjustable
DBA at: 5.5 bar is 79
Optional Extra
Standard Inlet Threads: 1/4" BSP
Options: 1/4 NTP
Please specify on order 1/4" NPTF
Bar Vol in m³ /min Vol out m³ /min
1.38 0.181 1.512
2.76 0.295 2.352
4.14 0.396 2.856
5.52 0.513 3.36

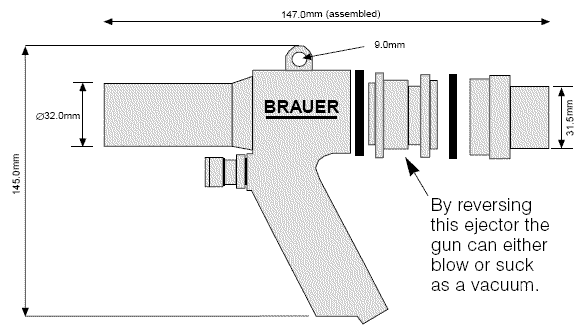

cg22
