StandardRange: Airmovers:
Group: Standard Adjustable Gap

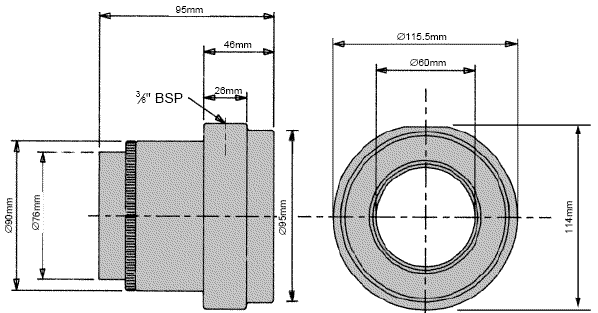

Product: AM60A

Technical details.

<< Back

Material: Aluminium alloy
Weight: 0.83Kg
Standard Gap: Adjustable
DBA at: 5.5 bar is 80
Shims: Not applicable
Optional Extra
Standard Inlet Threads: 3/8" BSP
Options: 3/8" NPT
Please specify on order 3/8" NPTF

Bar Vol in m³ /min Vol out m³ /min
0.38 0.28 4.191
2.76 0.476 7.561
4.14 0.654 9.231
5.52 0.841 11.327






am60a
