StandardRange: Airmovers:
Group: Standard Adjustable Gap
Product: AM40A

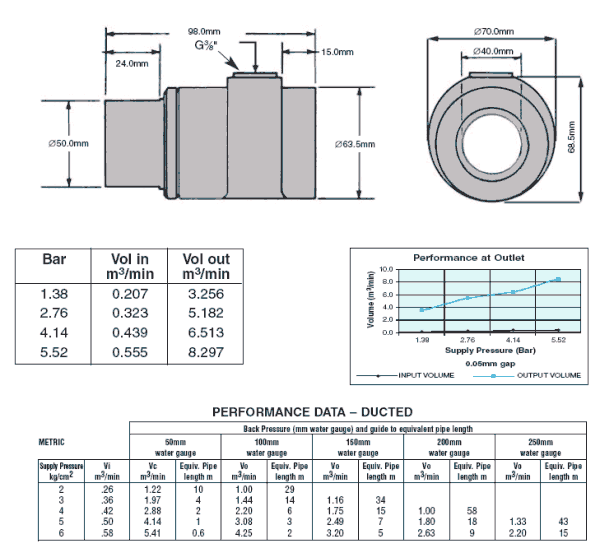

Technical details.

<< Back

Material: Aluminium alloy
Weight: 0.39Kg
Standard Gap: Adjustable
DBA at: 5.5 bar is 80
Shims: Not applicable
Standard Inlet Threads: G3/8"
Options: 3/8" NPT
Please specify on order 3/8" NPTF
Bar Vol in m³ /min Vol out m³ /min
1.38 0.207 3.256
2.76 0.323 5.182
4.14 0.439 6.513
5.52 0.555 8.297






am40a
