StandardRange: Airmovers:
Group: Standard Fixed Gap
Product: AM35

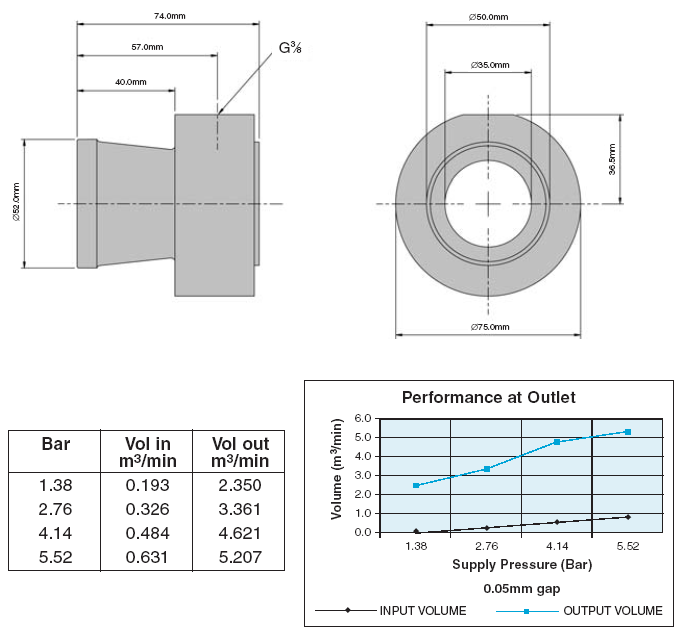

Technical details.

<< Back

Material: Zinc alloy and Aluminium
Weight: 0.19Kg
Standard Gap: 0.05mm
DBA at: 5.5 bar is 80
Shims: Not required
Optional Extra
Standard Inlet Threads: 3/8" BSP
Options: 3/8" NPT
Please specify on order 3/8" NPTF

Bar Vol in m³ /min Vol out m³ /min
1.38 0.193 2.35
2.76 0.326 3.361
4.14 0.484 4.621
5.52 0.631 5.207






am35
