StandardRange: Airmovers:
Group: Standard Adjustable Gap

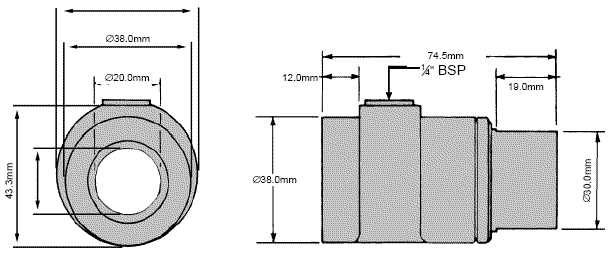

Product: AM20A

Technical details.

<< Back

Material: Aluminium alloy
Weight: 0.13Kg
Standard Gap: Adjustable
DBA at: 5.5 bar is 79
Shims: Not applicable
Optional Extra
Standard Inlet Threads: 1/4" BSP
Options: 1/4" NPT
Please specify on order 1/4" NPTF
Bar Vol in m³ /min Vol out m³ /min
1.38 0.105 1.614
2.76 0.164 2.492
4.14 0.224 3.03
5.52 0.286 3.681
