Trigger ActionRange: Airmovers:
Group: Trigger Action Blow Guns

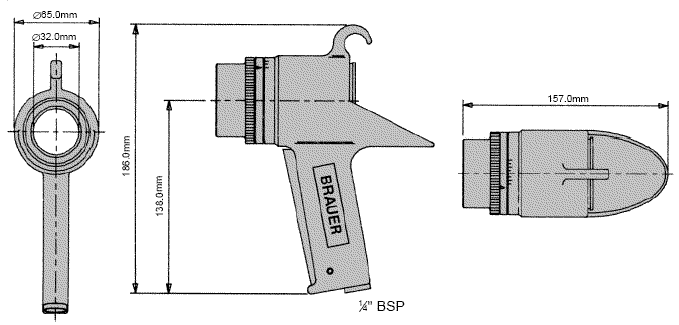

Product: AG32

Technical details.

<< Back

Material: Aluminium Alloy
Weight: 0.54Kg
Standard Gap: Adjustable
DBA at: 5.5 bar is 78
Optional Extra
Standard Inlet Threads: 1/4" BSP
Options: 1/4 NTP
Please specify on order 1/4" NPTF
Bar Vol in m³ /min Vol out m³ /min
1.38 0.122 1.931
2.76 0.218 2.939
4.14 0.311 3.695
5.52 0.405 4.199






ag32
