AirmizerRange: Airmovers:
Group: Airmizer Nozzle
Product: A2 Standard

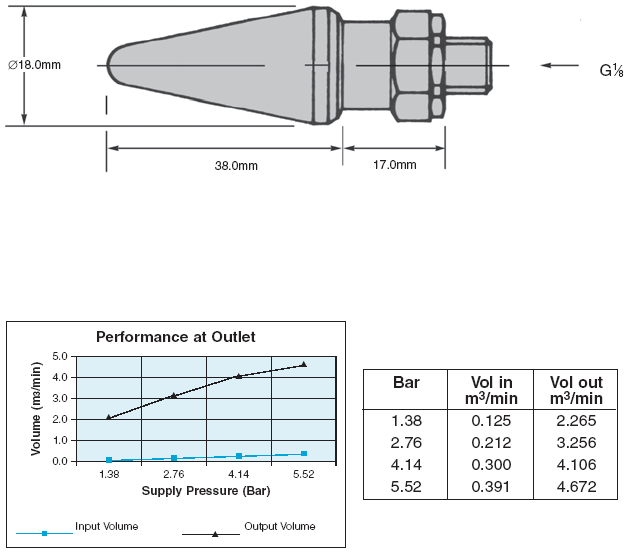

Technical details.

<< Back

Material: Aluminium Alloy
Weight: 0.025Kg
Standard Gap: 0.15mm
DBA at: 5.5 bar is 83
Standard Inlet Threads: 1/8" BSP only
Bar Vol in m³ /min Vol out m³ /min
1.38 0.125 2.265
2.76 0.212 3.256
4.14 0.3 4.106
5.52 0.391 4.672






a2
